    Small Heat Loss Spray Drying Tower 150KG For Cemented Carbide Industry

    Ask Lasest Price
    Brand Name : EasyFashion Industry
    Model Number : GN150S
    Certification : CE Certificate
    Supply Ability : 10 set per year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Small Heat Loss Spray Drying Tower 150KG For Cemented Carbide Industry

    150KG Small heat loss Spray Drying Tower For Cemented Carbide Industry


    1. Overview

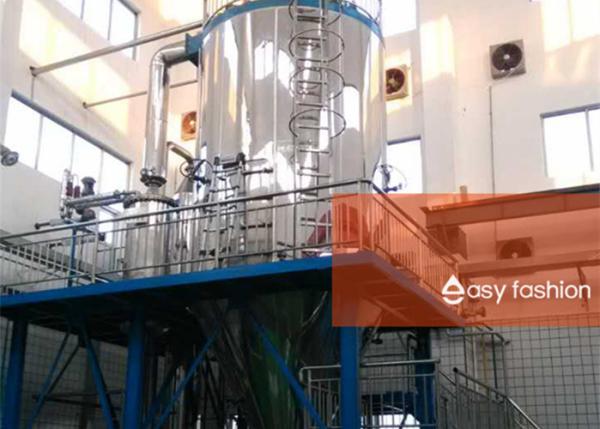

    Spray drying tower is mainly used for drying cemented carbide mixture.

    Spray drying tower is composed of mixture inlet system, heating system, drying tower, dust collecting system, cleaning and condensation system, motor fan system, and electric control system.

    Heating method: electrical heating N2

    Spray method: nozzle


    2.Technical specifications

    Model

    GN300S

    Rated voltage

    380 V 50 Hz, three-phase five-wire

    Power

    280kW

    Raw material

    WC-Co slurry

    Slurry medium

    Alcohol (water≤10%)

    Solid in slurry

    70%~85%

    Medium

    Alcohol

    Alcohol recovery rate

    ≥95%

    Capacity

    300kg/h

    Gas inlet temperature of drying tower

    190~230°C

    Gas outlet temperature of drying tower

    80~100°C

    Alcohol inlet temperature of cleaning tower

    16~20°C

    Gas outlet temperature of cleaning tower

    19~25°C

    Oxygen content in drying tower

    ≤3%

    N2 supply

    3-4bar (tower)

    Purity: 99.9%

    N2 consumption

    60Nm3/h (O2 exhausting process)

    7Nm3/h (other process)

    Cooling water

    13~15°C,2-3 bar

    Compressed air

    5~6 bar

    Compressed air consumption

    5m3/h (others)

    Residual alcohol in RTP

    0.2~0.3%

    Powder temperature

    ≤25°C

    Material recovery rate

    ≥98%

    ≥94% (Drying tower);

    ≥4% (Dust collecting system)
