Metal Spark Plasma Sintering Furnace , Vacuum Sintering Furnace Powder Metallurgy

    Buy cheap Metal Spark Plasma Sintering Furnace , Vacuum Sintering Furnace Powder Metallurgy from wholesalers

    Buy cheap Metal Spark Plasma Sintering Furnace , Vacuum Sintering Furnace Powder Metallurgy from wholesalers
    • Buy cheap Metal Spark Plasma Sintering Furnace , Vacuum Sintering Furnace Powder Metallurgy from wholesalers

    Metal Spark Plasma Sintering Furnace , Vacuum Sintering Furnace Powder Metallurgy

    Ask Lasest Price
    Brand Name : EasyFashion Industry
    Model Number : EF-10T-5
    Certification : CE Certificate
    Supply Ability : 10 set per year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Metal Spark Plasma Sintering Furnace , Vacuum Sintering Furnace Powder Metallurgy

    Spark Plasma Sintering Furnace(SPS)

    .jpg

    Product Description

    1.Overview

    The spark plasma sintering furnace (SPS) is one of the most advanced sintering furnace.

    With characteristics of fast sintering and high density of specimen, this furnace is mainly applied to sintering of nanophase materials, functionally graded material (FGM), nanoscale the rmoelectric materials, rare earth permanent magnets, target materials, nonequilibrium materials and medical implants, etc.sps _.png


    2.Specifications

    ModelRated PowerOutput
    Current
    Input VoltageMax.
    Temperature
    Max.
    Pressure
    SpecimenPressure
    Head Stroke
    Ultimate
    Vacuum
    EF-10T-550kW0-5000A0-10V2300°C10Tø 50100mm10Pa
    EF-20T-10100kW0-10000A0-10V2300°C20Tø100100mm10-3Pa

    3.Features

    1.Fast Sintering, high efficiency, energy saving and small occupied space.
    2.Widely applications in the fields of metals, ceramics, nanometer materials, non-crystalline material, composite materials and functionally graded materials, etc.
    3.Easy and safe operation under vacuum or protective atmosphere, and full automation control.


    4. Functions of SPS Sintering Furnace

    • working temperature up to 2400°C
    • vacuum: 5×10-3mbar
    • furnace gas: Ar / N2 (and others, on request)
    • servo hydraulic force control
    • precise, rigid frame with low deformation, accurate guiding of the pressing dies
    • measuring of densificatio path
    • double-walled water-cooled stainless steel vacuum vessel with a leak rate of up to 1×10-3 mbar l/s
    • easy accessibility
    • temperature measurement and control can be chosen between axial/radial pyrometer or flexibl thermocouples
    • freely programmable sintering parameters for up to 50 segments per recipe
    • freely programmamable pulse on/off (1...255 ms) for each segment individually
    • heating rate up to 1000 K/min
    • extensive software for data recording and evaluation of all sintering parameters
    • user friendly online process management system
    Customer Case

    Spark Plasma Sintering Furnace in Middle East

    In 2011, a material research institute in the Middle East consulted SPS. After long term technical and commercial communication. the purchase contract was signed in early 2012. Our technicians went to offer on-site instruction and training later in 2012, and high performance ceramic was sintered successfully

    1. Power suppl:100KVA

    2. Rated temperature:2200

    3. Temperature rising rate: 800/min

    4. Rated pressure: 10T

    5. Diameter of pressure head: ø100mm

    6. Cold state ultimate vacuum: 5*10-2mbar

    7. Sintered sample: ø30~ø40

    Installation and Debugging Process

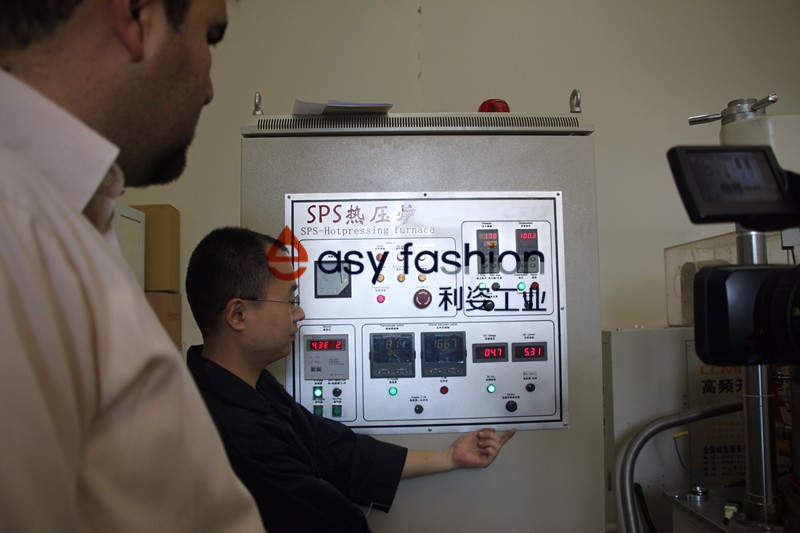

    Control carbinet of SPS furnace


    DIfferent size of moulds


    Put the moulds into the furnace body to heat


    Installation and Debugging finised




    Packaging & Shipping


    Company Information

    EasyFashion is the multifaceted manufacturer of atomization powder manufacturing equipment and thermal processing equipment.We take pride in offering diversified product range which comprises powder production equipment,sintering furnaces,microwave furnaces,heat treatment furnaces etc.
    Our efforts have always been focused on reducing purchase cost and minimizing investment risk for customers in industries of MIM (metal injection molding), acuum heat treatment, powder metallurgy, atomization powder manufacturing,carbon and silicon carbide materials, as well as amorphous materials, photovoltaic materials and Li-ion battery materials, etc.


    paste-pic-dp_uuid_xl73j


    Patent

    paste-pic-dp_uuid_i5nql

    Customers

    paste-pic-dp_uuid_mxg6f

    FAQ

    1. How can I know your factory can produce equipment I need?

    Re: Contact us and let us know your requirements of equipment. Then we will send these requirements to our technical department. So we will know whether our factory can offer you equipment or not.


    2. Does your company customize equipment for customer?

    Re: Yes, we can customize equipment according to customers' requirements.


    3. Are you a trade company or a factory?

    Re: We are a manufacturer with a huge factory. Warmly welcome to visit our factory and contact with us.


    4. How can I believe your quality?

    Our equipment are eqquiped with mechanical parts of world renowned brands like Schneider, Omron and so on, and also approved ISO9001 certification.
