    Pusher Reduction Furnace Reduction Furnace for Salt Calcination with Double / Multiple Tube

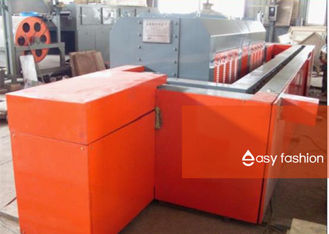

    Pusher Reduction Furnace

    I. Overview

    This continuous furnace is highly recommended for reduction of all kinds of metal oxides, calcination of all salts and sintering of powder metallurgies, etc.. Thanks to integrated furnace structure, customers benefit from easy installation and low maintenance.The pusher reduction furnace is endowed with excellent furnace tube with prolonged service life.



    II. Features

    1. Automatic temperature control offers ease of operation.

    2. Compact structure is responsible for promoted thermal insulation property and reduced maintenance workload.

    3. There are single tube, double tube and multiple tube reduction furnaces for selection.

    4. This powder metallurgy furnace comes with resistance heating or fuel heating.


    III.Technical specifications

    Specification/ ModelEF-RF-200/70-3EF-RF-285/70-5EF-RF-300/70-5EF-RF-400/80-5
    Rated heating temperature (°C)1050°C
    Quantity of furnace tube1222
    Size of furnace tube in heating zone (mm) (W x H x L)220x70x3700310x70x7000320x70x7200420x80x7500
    Quantity of heating zone3555
    Gas consumption (Nm3/h)5101020
    Production capacity (kg/h)30~6060~9090~150130~170
    Rated heating power (kW)70100120135
    Rated supply voltage (V)380V50 Hz
    Material of muffle furnace tube1Cr18Ni9Ti(SU321), OCr25Ni20(SUS310S)
    Material of heating elementsHigh-temperature resistance wire, silicon carbide rod
    Furnace structureRegular pattern and whole fiber lining structure
    Boat pushing methodElectric, pneumatic and hydraulic
    Temperature controlling methodPID+SCR
    Overall size (roughly) (mm) (W x H x L)1450x1600x115001850x1650x173002050x1700x175002150x1750x18000
