Three Phase Five Wire Spray Drying Tower Cemented Carbide Drying

    Buy cheap Three Phase Five Wire Spray Drying Tower Cemented Carbide Drying from wholesalers

    Buy cheap Three Phase Five Wire Spray Drying Tower Cemented Carbide Drying from wholesalers
    • Buy cheap Three Phase Five Wire Spray Drying Tower Cemented Carbide Drying from wholesalers

    Three Phase Five Wire Spray Drying Tower Cemented Carbide Drying

    Ask Lasest Price
    Brand Name : easyfashion
    Model Number : GN
    Certification : CE/CB/CQC/FCC/ISO
    Price : USD+10,000~1,000,000+set/sets
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10
    Delivery Time : 30-120 days, or according to your request
    • Product Details
    • Company Profile

    Three Phase Five Wire Spray Drying Tower Cemented Carbide Drying

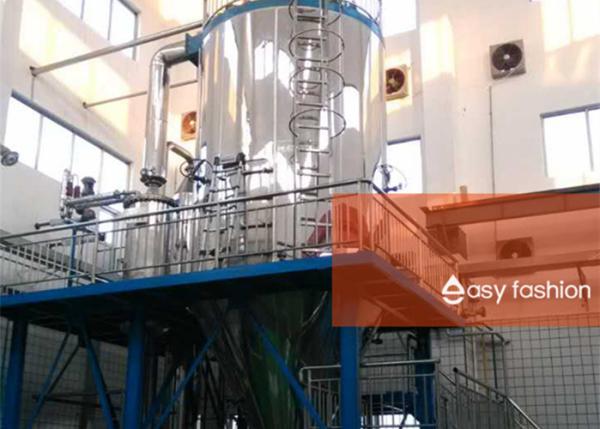

    Spary drying tower


    1. Overview


    Spray drying tower is mainly used for drying cemented carbide mixture.


    Spray drying tower is composed of mixture inlet system, heating system, drying tower, dust collecting system, cleaning and condensation system, motor fan system, and electric control system.


    Heating method: electrical heating N2


    Spray method: nozzle


    2. Technical specifications


    Model

    GN300S

    Rated voltage


    380 V 50 Hz, three-phase five-wire


    Power

    280kW

    Raw material


    WC-Co slurry


    Slurry medium


    Alcohol (water≤10%)


    Solid in slurry

    70%~85%

    Medium


    Alcohol


    Alcohol recovery rate

    ≥95%

    Capacity

    300kg/h

    Gas inlet temperature of drying tower

    190~230°C

    Gas outlet temperature of drying tower

    80~100°C

    Alcohol inlet temperature of cleaning tower

    16~20°C

    Gas outlet temperature of cleaning tower

    19~25°C

    Oxygen content in drying tower

    ≤3%

    N2 supply

    3-4bar (tower)

    Purity: 99.9%


    N2 consumption

    60Nm3/h (O2 exhausting process)

    7Nm3/h (other process)


    Cooling water

    13~15°C,2-3 bar

    Compressed air

    5~6 bar

    Compressed air consumption

    5m3/h

    Residual alcohol in RTP

    0.2~0.3%

    Powder temperature

    ≤25°C

    Material recovery rate

    ≥98%

    ≥94% (Drying tower);

    ≥4% (Dust collecting system)
