Brand Name : | easyfashion |
Model Number : | EF-VQ(copper brazing furnace) |
Certification : | CE/CB/FCC/CQC/ISO |
Price : | US $150,000 - 230,000 / Set |
Payment Terms : | L/C, D/A, D/P, Western Union |
Supply Ability : | 15 Set/Sets per Year |
Delivery Time : | 120days |

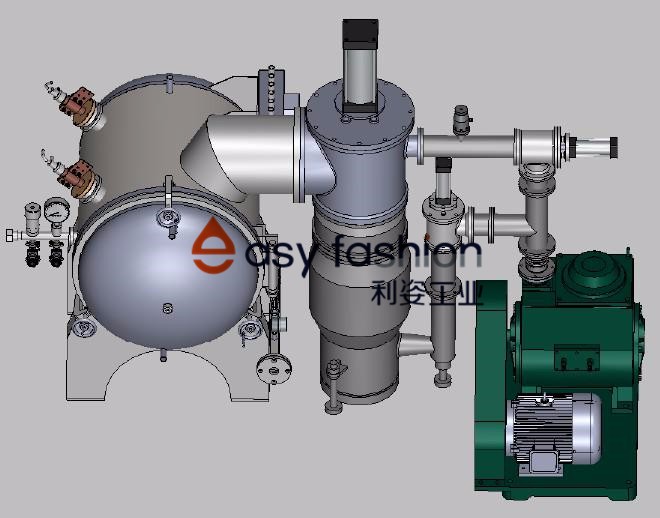

Vacuum Brazing Furnace
1.Overview
Vacuum brazing furnace is principally adopted in Al brazing, Cu brazing and stainless-steel brazing of aerospace devices, vehicle components, electronic communicating devices, home appliances, heat exchanger and various heat radiators.
2.Specifications
Specification/ Model | EFZK-QH-50 | EFZK-QH-100 | EFZK-QH-200 | EFZK-QH-300 | EFZK-QH-400 |
Rated loading capacity (kg) | 50 | 100 | 200 | 300 | 400 |
Max. furnace temperature (°C) | 1350 | ||||
Temperature controlling precision (°C) | ≤±5 | ||||
Rated power(kW) | 50 | 90 | 120 | 150 | 180 |
Rated supply voltage (V) | 380 | ||||
Rated heating voltage (V) | Based on design. Furnace-front transformer is equipped. | ||||
Ultimate vacuum degree (Pa) | ≤6.67 (empty furnace in cold status) | ||||
Vacuum pressure rising rate (Pa/24h) | ≤50 | ||||
Gas cooling pressure (Mpa) | ≤0.1Mpa | ||||
Working zone size (mm) | 300*300*400 | 300*300*500 | 450*400*670 | 450*400*850 | 600*600*1000 |
Configuration of temperature controlling system | Programmable regulator of Japan SHIMADEN | ||||
Configuration of vacuum system | Rotary vane pump+ Roots pump | ||||
Note: The above is standard configuration and can be adjusted based on customer requirements. |
3.Features
1. Single chamber, interior heating, cool wall, vertical and
horizontal layout are all available with compacted structure.
Customers avail from various choices to fit their specific
application needs.
2. Heating chamber of this vacuum brazing furnace is fitted with
temperature control deployed in several zones. Hence, outstanding
heat uniformity is aggressively guaranteed.
3. Well-conceived thermal insulation shield is available in this
vacuum brazing furnace, whereby promoting heat efficiency.
4. Vacuum system of this vacuum brazing furnace comes with
specialized condensation filter to eliminate pollution that brazing
flux vapor brings to vacuum pump.
![]() |
