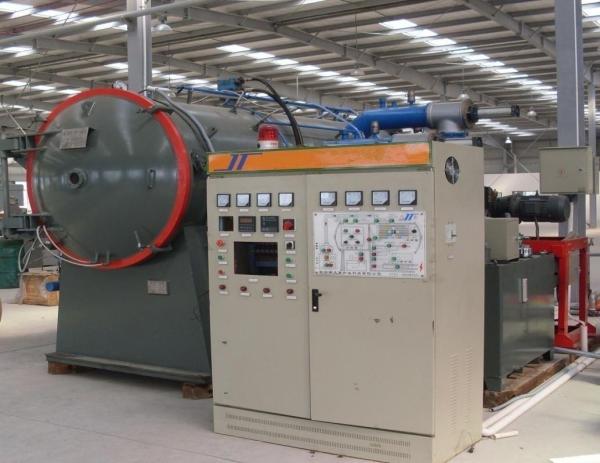

    Double Chambers Vacuum Oil Quenching Furnace With Unique Gas Cooling System

    Vacuum Oil Quenching Furnace

    I. Overview

    It is mainly applied to quenching heat treatment of high-speed steel, die steel, Martensitic stainless steel, alloy steel, titanium alloy, etc.. Various technology choices and processing application range are provided with full-automatic programmable controlling.


    II. Technical Parameters

    Specification/ ModelEF-ZKQY-50EF-ZKQY-100EF-ZKQY-150
    Effective heating zone (mm)550*380*2501000*600*4501500*750*600
    Loading capacity (kg/batch)100300500
    Heating power (kW)70100120
    Furnace temperature homogeneity(°C)±5
    Ultimate vacuum degree2x10-1
    6.7*10-3
    Pressure rising rate (Pa/h)≤0.67
    Gas cooling pressure (bar)≤2
    Max. Temperature (°C)1350
    Heating elementsGraphite and molybdenum
    Note: The above is standard configuration and can be adjusted based on customer requirements.

    III. Features

    1. With compacted double chambers structure, vacuum oil quenching furnace is integrated with optimal layout for space efficiency.

    2. Hearth of this vacuum quench furnace is heated as a whole unit. Internal charging trays are in stacking structure. Feeding speed is frequency regulated in slow-fast-slow mode, thus ensuring stable feeding and reduced time.

    3. Unique gas cooling system comes with built-in air channel for maximized cooling efficiency.

    4. This vacuum oil quenching furnace is fitted with high efficiency external oil cooling circulation system for quench.

    5. Oil tank has large capacity. Inside the tank, there are nozzles in various directions. As a result, there will be intense convection and turbulence during oil spraying, whereby catering to quench for large workpiece.

    6. Vacuum degree and air cooling pressure are allowed to be adjusted to fit specific materials.

    7. Simple operation and flexible input ensure stable performance. Manual and automatic operation can be switched readily. Moreover, alarms will be triggered automatically on failures of the vacuum oil quench furnace.
