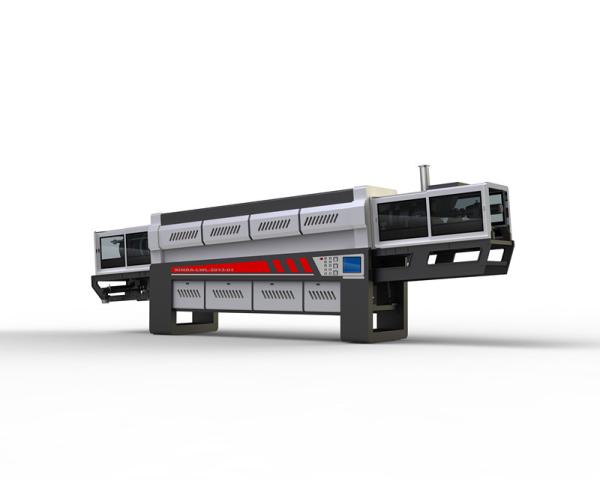

Rotary-tube calcining furnace
Overview:
The equipment is mainly used for calcining of chemical and metal powders. For example, it can calcine APT to get WO3.
Specification:
Type | GN5800C | GN6300C | GN8000C |
Size(mm) | Φ300×5800 | Φ400×6800 | Φ400×8000 |
Power | 90KW | 140Kw | 300Kw |
Rated voltage | 380V 50Hz, three-phase five-wire | ||
Rotating speed of tube | 1~8 r/min | ||
Temperature control | Three zones | Four zones | Four zones |
Tilting angle of tube | 3°~6° Adjustable | ||
Max. working temperature | 700℃ | ||
Max. testing temperature | 900℃ | ||
Powder recycling rate | ≥95% | ||
Dimension(L×W×H) | 8100×1400×2750mm | 10000×1780×3280mm | 10500×1800×2890mm |
Features:
1. The charge and discharge sprial of furnace tube are adopt
coversion frequency to regulate speed and control the output and
quality.
2. Stable temperature change, precision contorl,less error, high
quality.
3. Suitable for different products and quality.
4. Energy saving, long service life,high production efficiency .
![]() |
