    Max 2300C Vacuum Heat Treatment Furnace Mini Spark Plasma Sintering Furnace SPS Sintering


    Lab Equipment Sparek Plasma Sintering (SPS) Furnace



    1. Overview

    The spark plasma sintering furnace (SPS) is one of the most advanced sintering furnace. With characteristics of fast sintering and high density of specimen, this furnace is mainly applied to sintering of nanophase materials, functionally graded material (FGM), nanoscale the rmoelectric materials, rare earth permanent magnets, target materials, nonequilibrium materials and medical implants, etc.



    2. Specifications

    Model

    Rated Power

    Output
    Current

    Ratedworking
    temperature

    Maximum pressure

    Sample size

    Ram stroke

    Ultimate vacuum

    EF-SPS10T-550KW0-50000A2300°c10Tø50100mm10-3Pa
    EF-SPS20T-10100KW0-10000A2300°c20Tø100100mm10-3Pa



    3. Equipment Features

    1. working temperature up to 2400°C
    2. vacuum: 5×10-3mbar
    3. furnace gas: Ar / N2 (and others, on request)
    4. servo hydraulic force control
    5. precise, rigid frame with low deformation, accurate guiding of the pressing dies
    6. measuring of densificatio path
    7. double-walled water-cooled stainless steel vacuum vessel with a leak rate of up to 1×10-3 mbar l/s
    8. easy accessibility
    9. temperature measurement and control can be chosen between axial/radial pyrometer or flexibl thermocouples
    10. freely programmable sintering parameters for up to 50 segments per recipe
    11. freely programmamable pulse on/off (1...255 ms) for each segment individually
    12. heating rate up to 1000 K/min
    13. extensive software for data recording and evaluation of all sintering parameters
    14. user friendly online process management system

    4. Applicable

    Metal:Fe, Cu, Al, Au, Ag, Ni, Cr, Mo, Sn, Ti, W, Be, etc.

    Ceramics Oxyde: Al2O3, Mulite, ZrO2, MgO, SiO2, TiO2, HfO2
    Carbide: SiC,B4C, TaC, WC, ZrC, VC
    Nitride: Si3N4, TaN, TiN, AlN, ZrN, VN
    Boride: TiB2, HfB2, LaB6, ZrB2, VB2
    Fluoride: LiF, CaF2, MgF2
    Cermet: Si3N4+Ni, Al2O3+Ni, ZrO2+Ni, Al2O3+Ti, SUS+WC/Co, BN+Fe, WC+Co+Fe
    Intermetallic Compound: TiAl, MoSi2, Si3Zr5, NiAl, NbCo, NbAl, LaBaCuSO4, Sm2Co17
    And other Organic Material, Composite Material.



    5. Equipment Characteristics

    • Fast sintering, good energy-saving, high efficiency
    • Adopts DC pulse to realize the heating cycle.
    • Through absorption and digestion of the Japanese technology, we create our own equipment with lateral door-opening framework. All the processing location are processed precisely by the machining center, to ensure no errors exist in every parts. Meanwhile, the pressure heads up and down keep concentric, same place and simultaneous.


    6. Supply Scope

    NO.ITEMQTY.
    1Furnace bodyONE SET
    2TRP-60 monoblock pumpONE SET
    3Vacuum electric valveONE SET
    4Digital resistant-type vacuum gaugeONE SET
    5Pulse power supplyONE SET
    6Eurotherm instrumentsTWO SETS
    7Control cabinetONE SET
    8K-type thermocouple (Nanpu instrument)ONE SET
    9Two-color infrared instrument (American Rayteck)ONE SET
    10Φ30m and, Φ40mmONE SET EACH

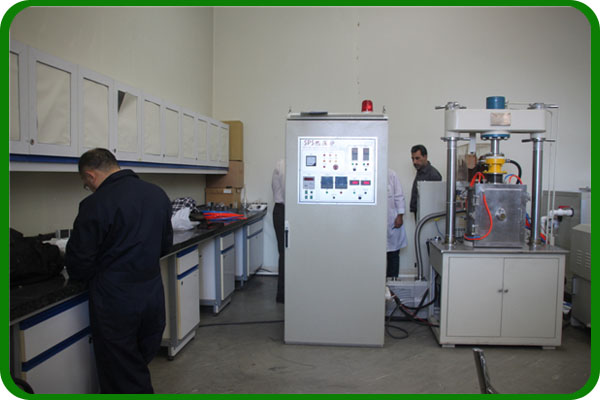

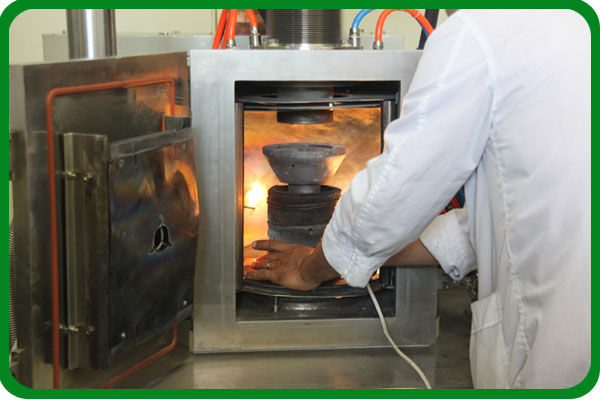

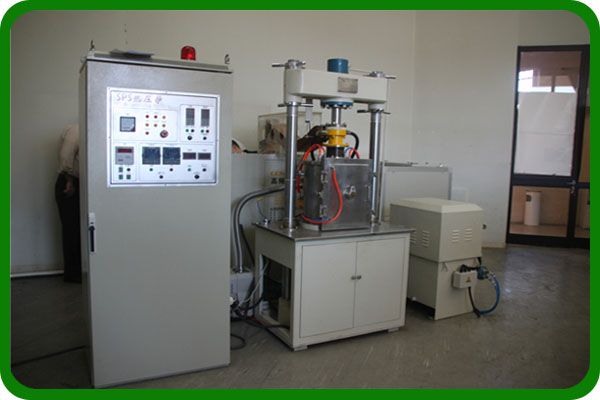

    7. Customer Cases
